Data Importing / Exporting

Function Summary

• You can now record data onto the TYPE-R and transfer data to the LVS at a later time.
• You no longer need to be connected to a Wi-Fi network continuously.
• It is an excellent alternative if having Wi-Fi and connectivity issues between the TYPE-R and LVS.

Use Case (examples)

• You can record data locally on the LVS and or TYPE-R if the area has a bad Wi-Fi reception.
• You can use the LVS to follow a cyclist on a trail.
• Can be used to record a runner on a track.

How to Use

1. First disable the "Live Publish" function on the TYPE-R (Note: You can still use the "Live Publish" option, but imported data will overwrite preexisting data)
2. Start the activity on the TYPE-R
3. Begin recording on the LVS with the "Live Publish" function disabled (There will be no realtime graph on LVS, but all other functions will operate normally)
4. Once the activity is completed, hit "stop recording" on LVS. You can then open the recording from the File menu
5. On the TYPE-R select "Pause" and tap "EXPORT DATA" from the screen. (Note: DO NOT SELECT FINISH ACTIVITY)
6. Connect the TYPE-R to the same Wi-Fi network the LVS is on, after connecting, you are now ready to send data.

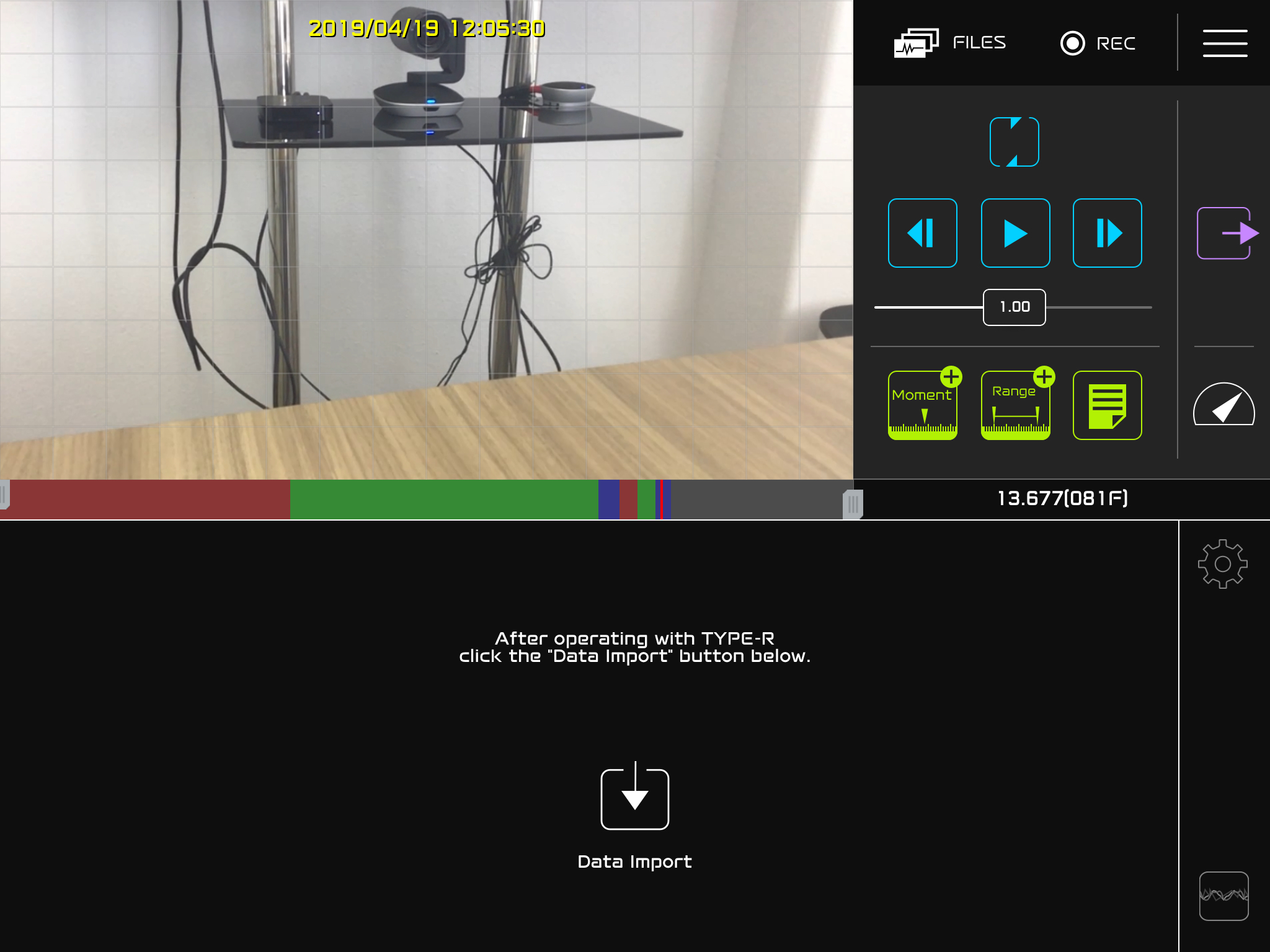

7. On the LVS app, tap "Import Data" from the graph area or menu.
8. Both LVS and TYPE-R should automatically communicate with one another and begin sending data.
9. Below are images of the graph in LVS being the same during Live Publishing.

Note:

• TYPE-R, Ipad, and the Live Publish feature must connect on the same Wi-Fi (network) upon recording.

Limitations

• You can only export data before finishing the activity. You cannot use this function to export data once the event is complete.
• You cannot import multiple takes all at once. Each take must be imported individually.
• Newly imported data will force overwrite existing data.
